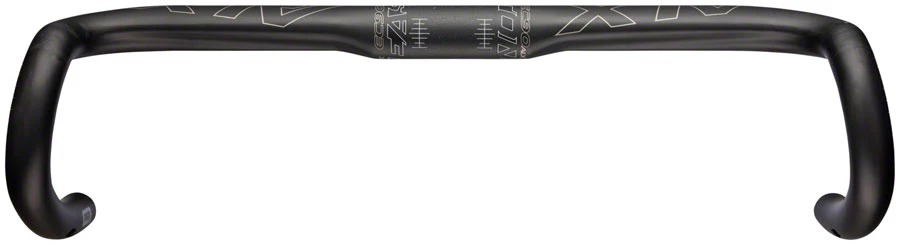

Easton EC90 ALX Drop Handlebar

The Easton EC90 ALX takes the best of our EC90 AX and SLX designs with an ergonomic top section and size-specific shape to optimize strength weight and ride feel. The first carbon bar purpose-built with 10 degrees of flare features an enhanced flex profile for optimum vibration damping.

Maximum Contact Drop (MCD) returns with the EC90 ALX with an 80mm reach 123mm drop

MCD gives extended drops for greater grip range and eliminates any feeling of your hands falling off the bar ends

10 degrees of flare offers the best compromise for hand position when riding on all roads

Every width of the EC90 ALX has its own size-specific top section with corresponding cross sectional dimensions

Size-specific dimensions optimize vertical compliance to reduce road vibrations and help smooth out rough gravel or bumpy roads but also retain the torsional stiffness riders need for sprinting and stability

Flare	10
Cable Routing	Internal
Material	Carbon
Clip-on Compatible	No
Bar Clamp Diameter (mm)	31.8
Color	Black
Accessory Mount Diameter	31.8
Width Measurement	Center
Width	38, 40, 42, 44, 46
Defined Color	Black
